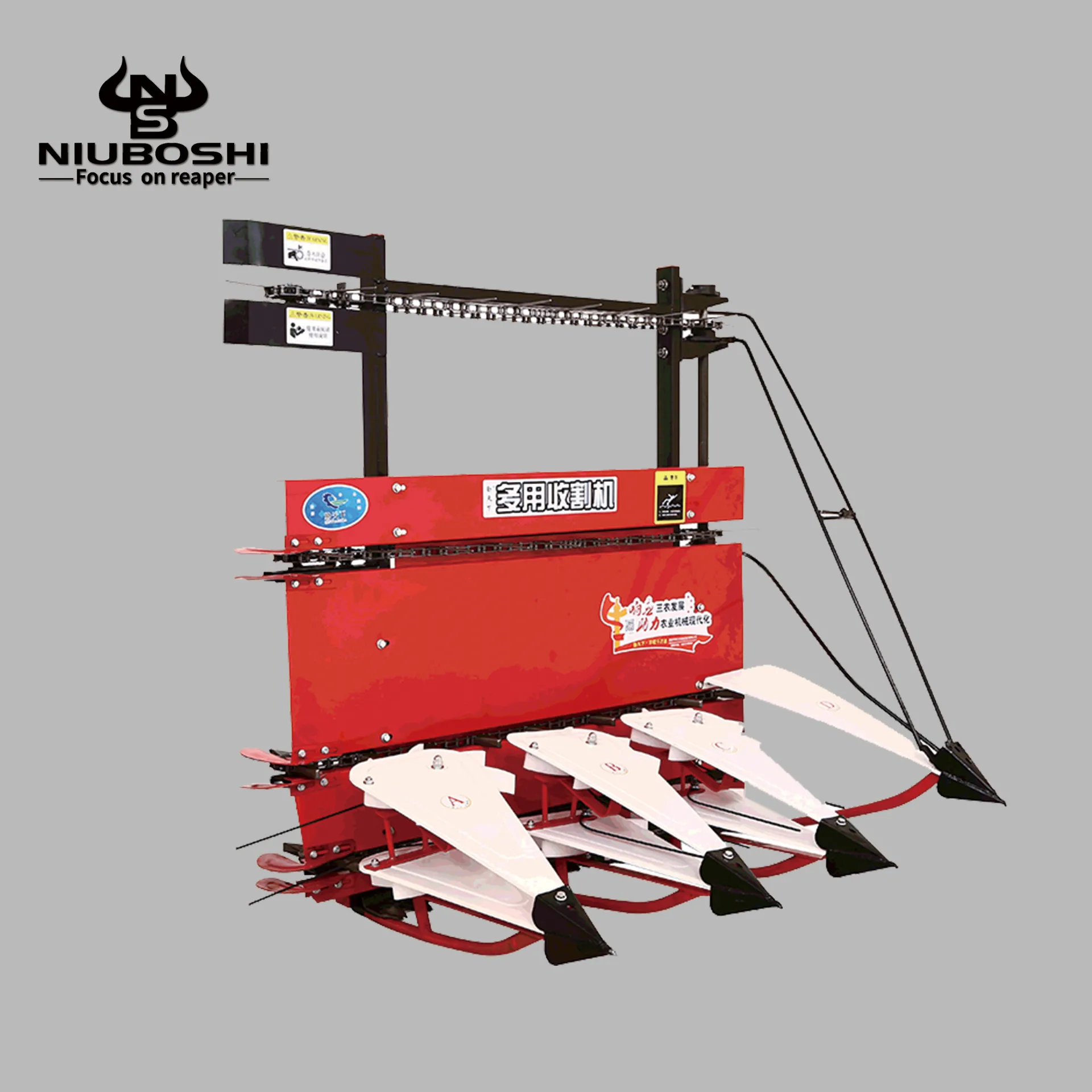

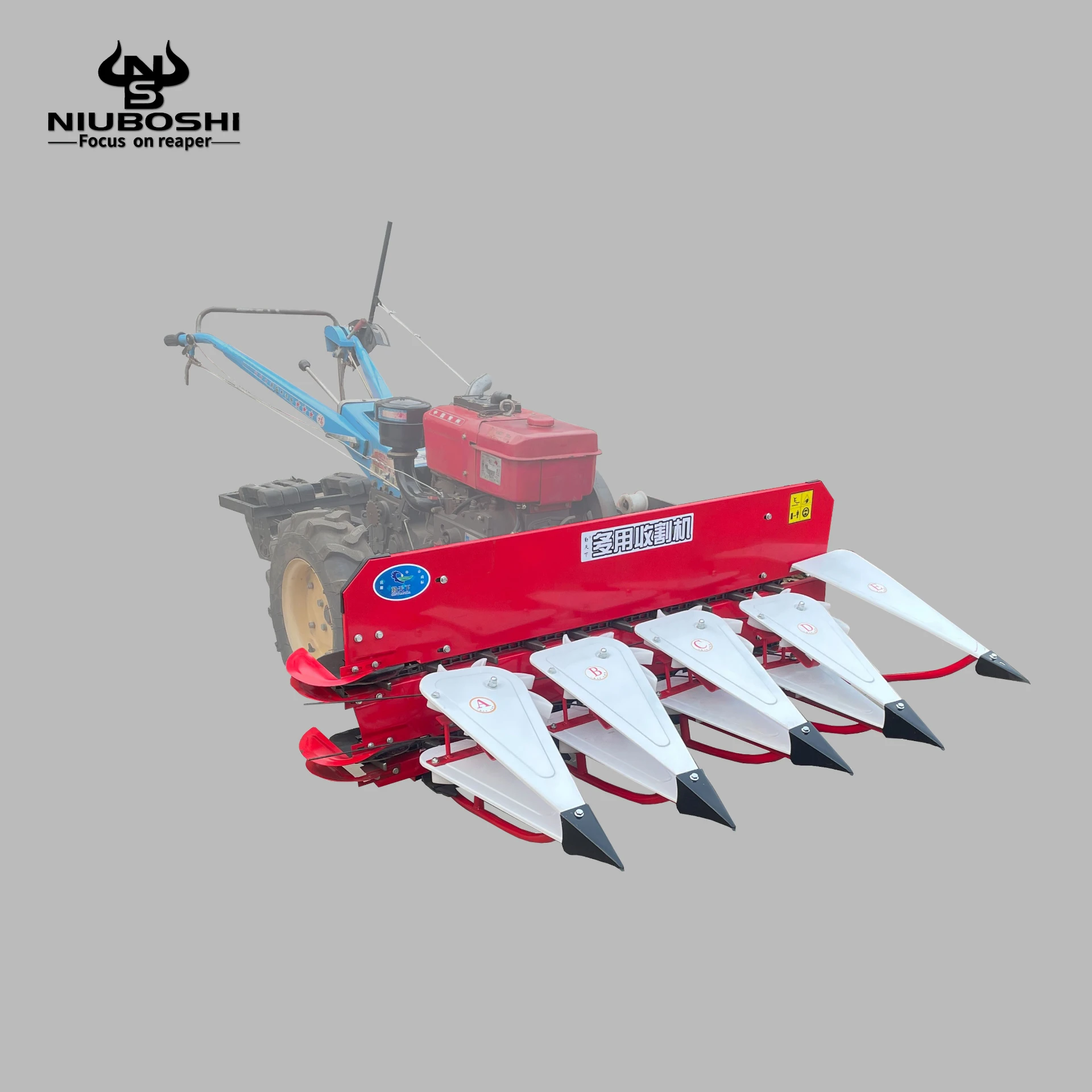

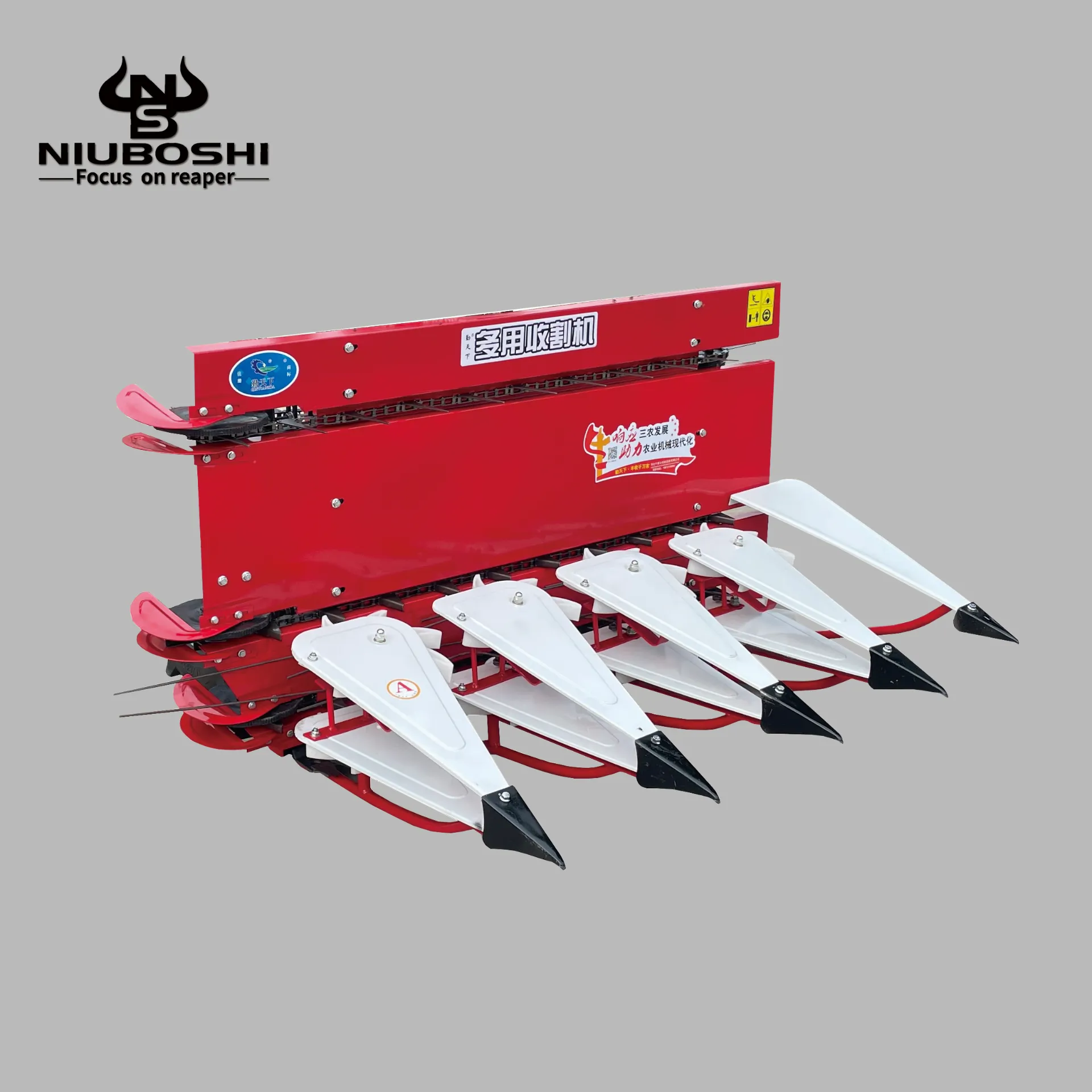

Walking tractor mounted reaper head

Model - GS120C2

Cut width -120cm

Weight -71.8kg

Stubble height ->3 cm

Harvest form - After cutting, right side tile

Harvest efficiency -3-6(mu/hour)

Horsepower -8-18 horsepower

Package form and size -155*70*65cm3

Net weight/gross weight -90 kg/125 kg

20GP packing quantity -72 sets

40HQ Packing quantity -192 units

Harvest crops - oats, peppers, millet, prunella, mint, etc

CONTACT NOW down load to pdf

Details

Tags

Main Product Introduction

The walking tractor cutting head GS120C2 is an efficient cutting head designed for agricultural harvesting. It has excellent performance and reliable operation, suitable for harvesting oats, pepper, millet, prunella, mint and other crops. Whether it is a small farm or a medium-sized farm, the GS120C2 is easily qualified.

The GS120C2 cutting head has a working width of 120 cm and a light weight of only 71.8 kg. It uses a right-side tiled harvest form after cutting, which can effectively discharge the harvested crops neatly on one side, which is convenient for subsequent processing and collection. The stubble height can be adjusted up to 3 cm, ensuring that the right amount of stubble height is left, which is conducive to soil conservation and crop growth.

The GS120C2 cutting head has excellent harvesting efficiency up to 3-6 acres per hour. With its excellent design and efficient cutting system, it is able to complete the harvest work quickly and accurately, saving time and labor costs. Not only that, the GS120C2 is also capable of adapting different horsepower walking tractors, ranging from 8 to 18 horsepower, which can be selected according to different farm requirements.

Installing the GS120C2 cutting head is simple and requires no complicated steps. Simply install it on the walking tractor, adjust the working height and Angle, and start the harvest operation. In addition, GS120C2 daily maintenance is also very convenient, simple maintenance and cleaning can ensure its long-term stable performance.

GS120C2 cutting head packing form is 155*70*65 cm ³, net weight is 90 kg, gross weight is 125 kg. Each 20-foot container can load 72 units, and 40-foot high cabinets can load 192 units, providing customers with flexible options and convenient transportation methods.

In short, the walking tractor cutting table head GS120C2 is a high-performance, efficient harvesting equipment, suitable for a variety of traditional crops and Chinese herbal medicine harvesting. Its simple structure, wide applicability and easy operation make it an indispensable tool in agricultural production. Whether you are a small farmer or a large-scale farm, the GS120C2 can provide you with a reliable harvesting solution
